Automotive Grade Dual Liquid Cooling Thermal Management System

Adopting automotive-grade core components, it is characterized by high quality and high performance, small size and light weight, and at the same time, it has a larger adjustment range, which can realize the temperature adjustment of the energy storage battery in a faster and smoother way. It can realize the function of low-temperature heat pump heating and medium-low temperature natural cooling, providing a stable and reliable temperature and humidity environment for industrial and commercial energy storage.

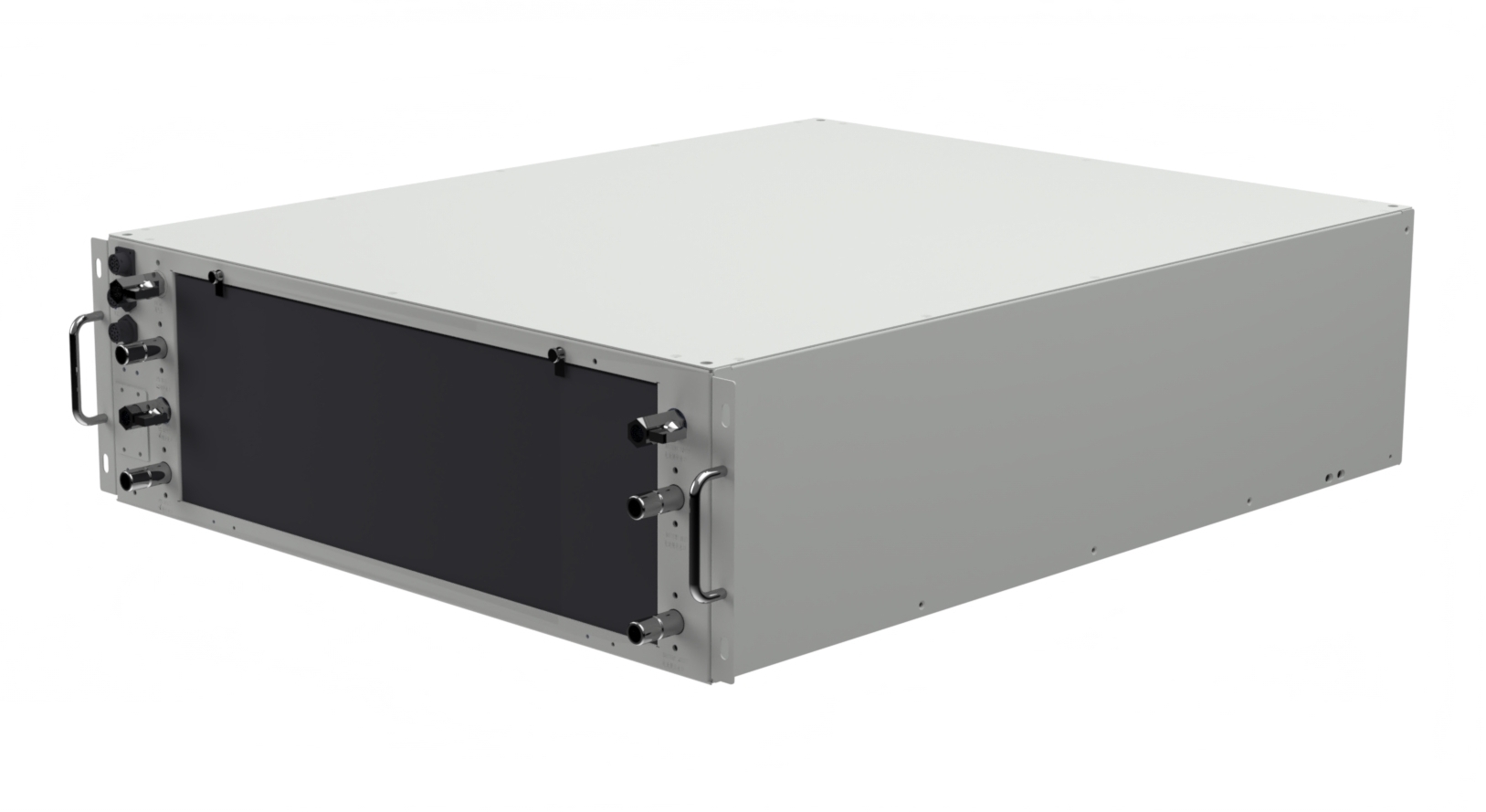

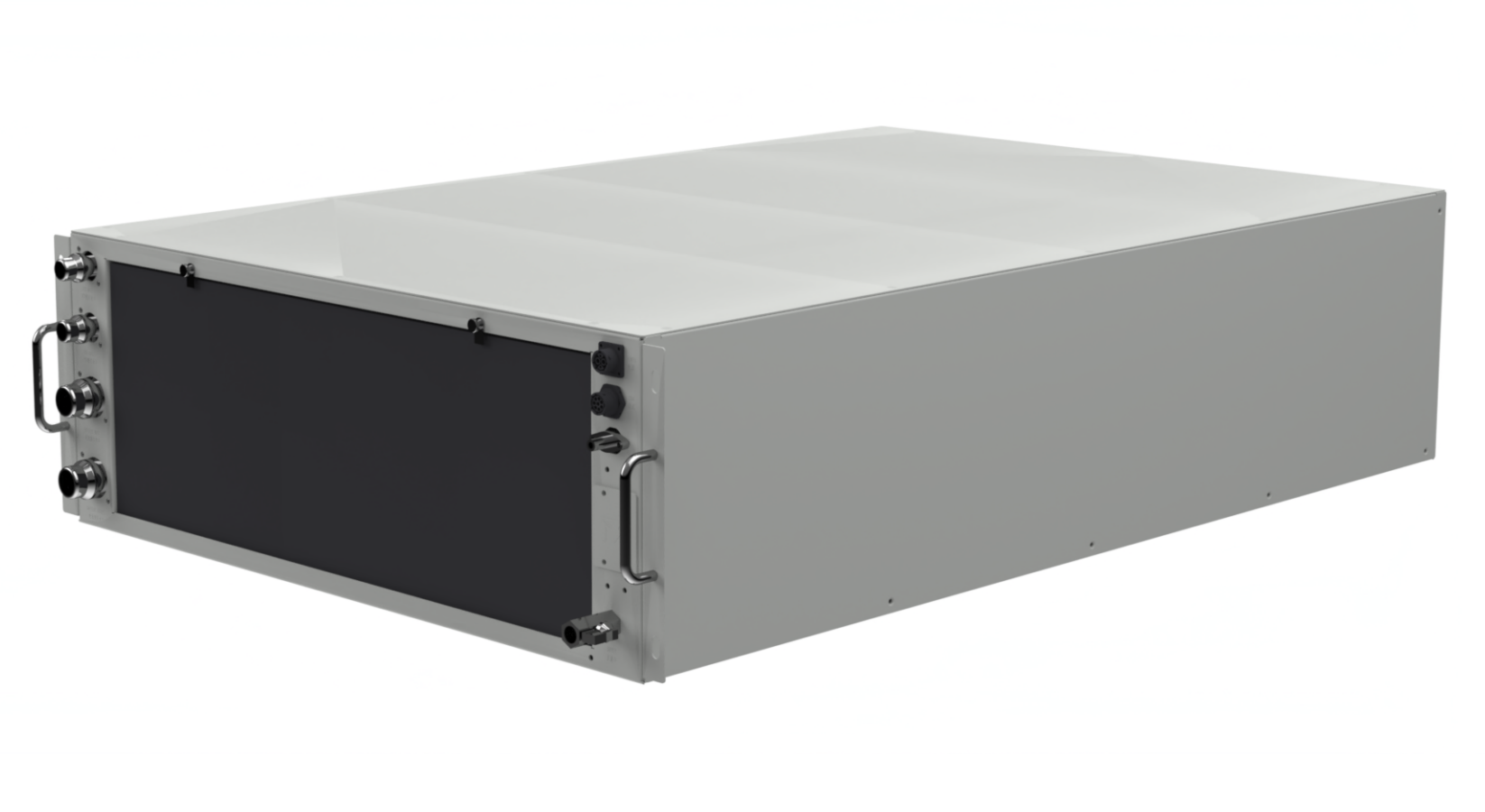

车规级双路液冷热管理系统_TMW0503AFR0AC1 卧式5+3单冷后出.jpg

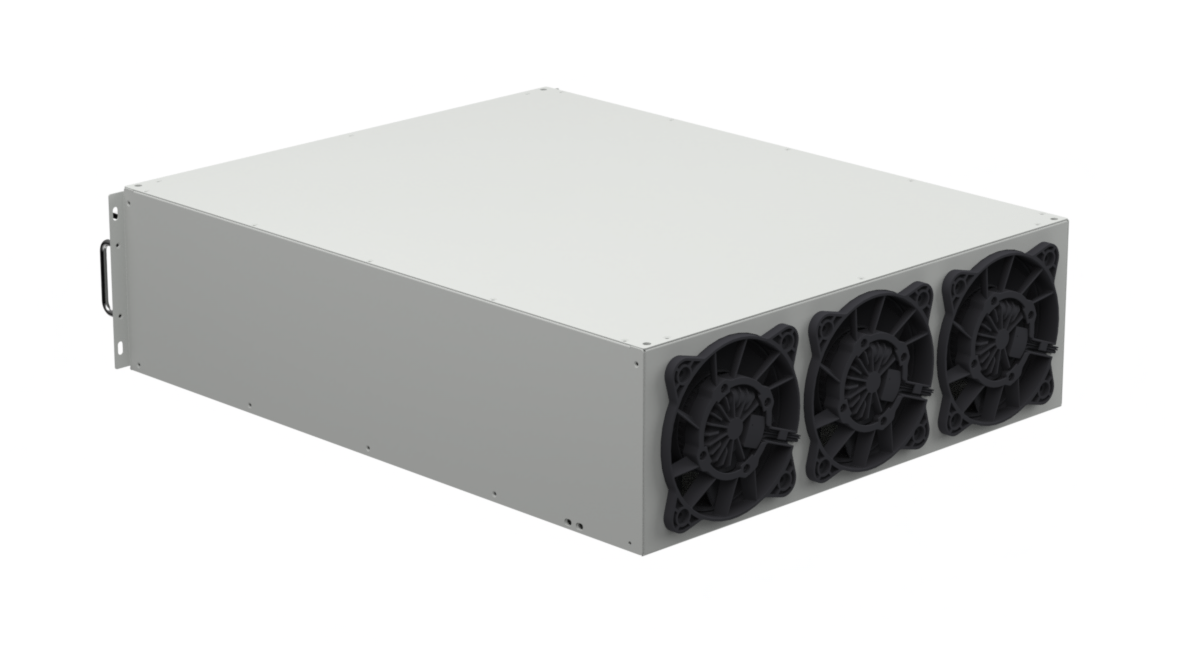

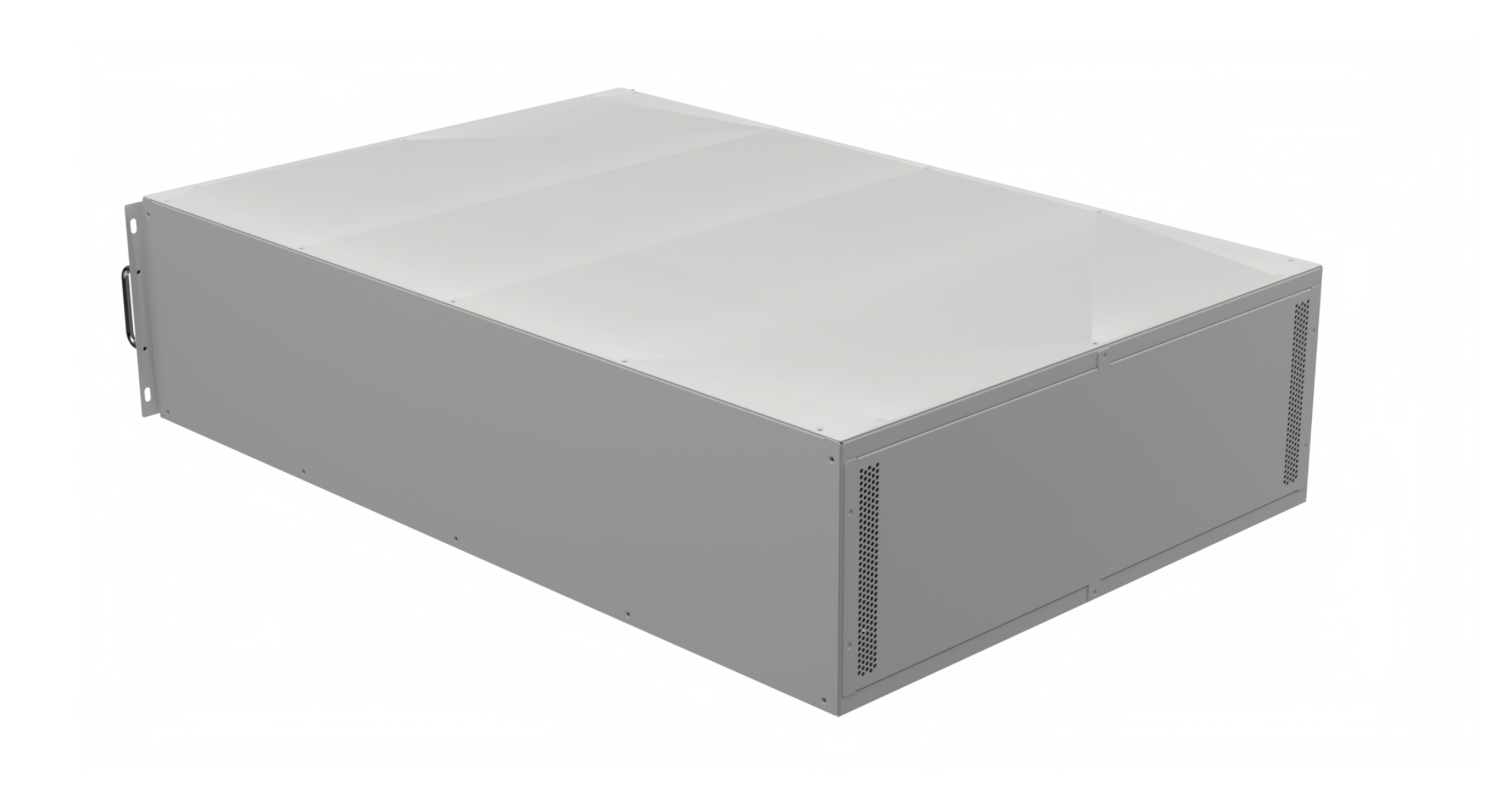

车规级双路液冷热管理系统_TMW0503AFR0AC1 卧式5+3单冷后出背面.png
车规级双路液冷热管理系统_TMW0503AFR0HP1 卧式5+3热泵 后出.png
车规级双路液冷热管理系统_TMW0503AFR0HP1 卧式5+3热泵 后出背面.png

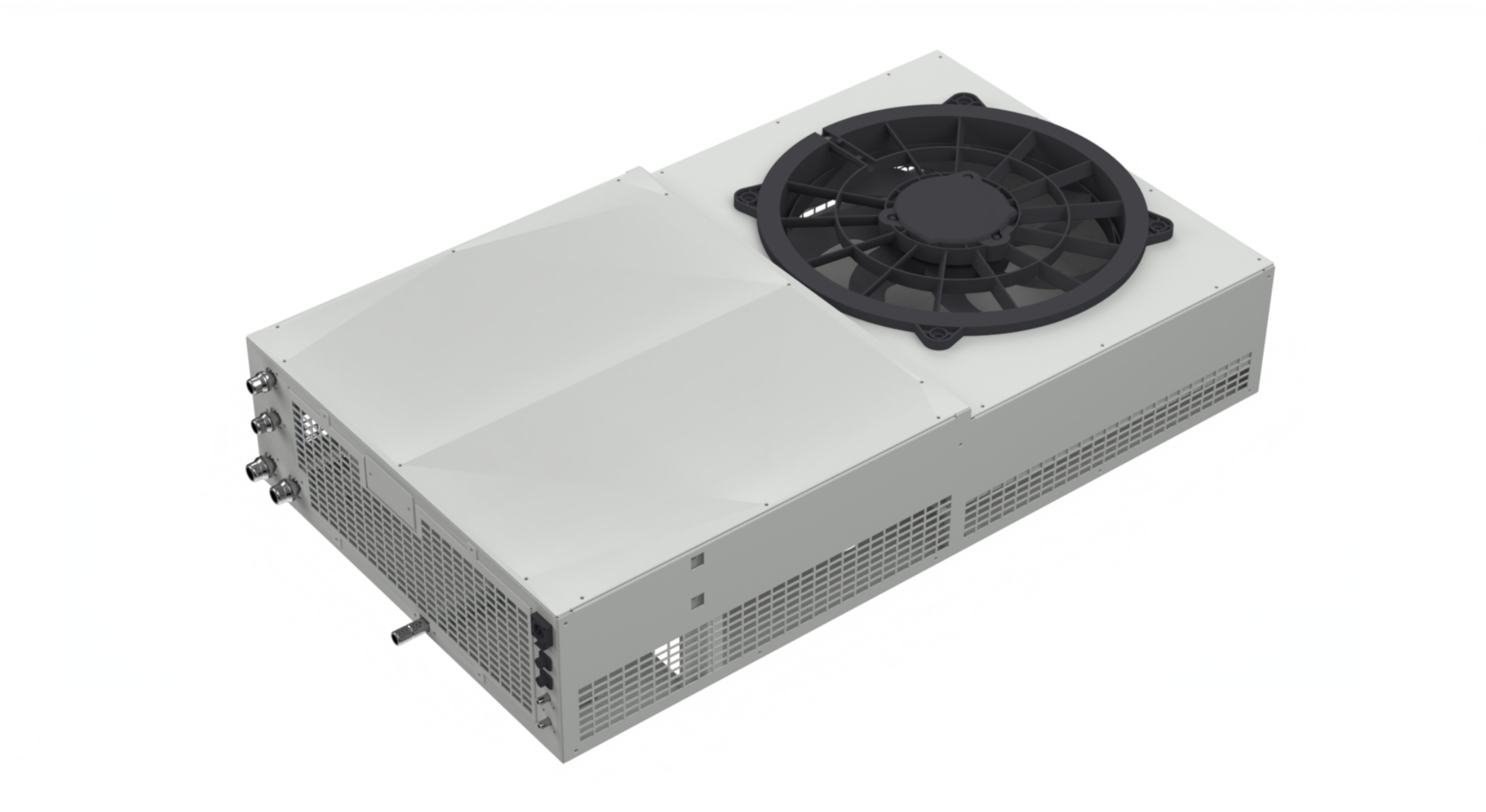

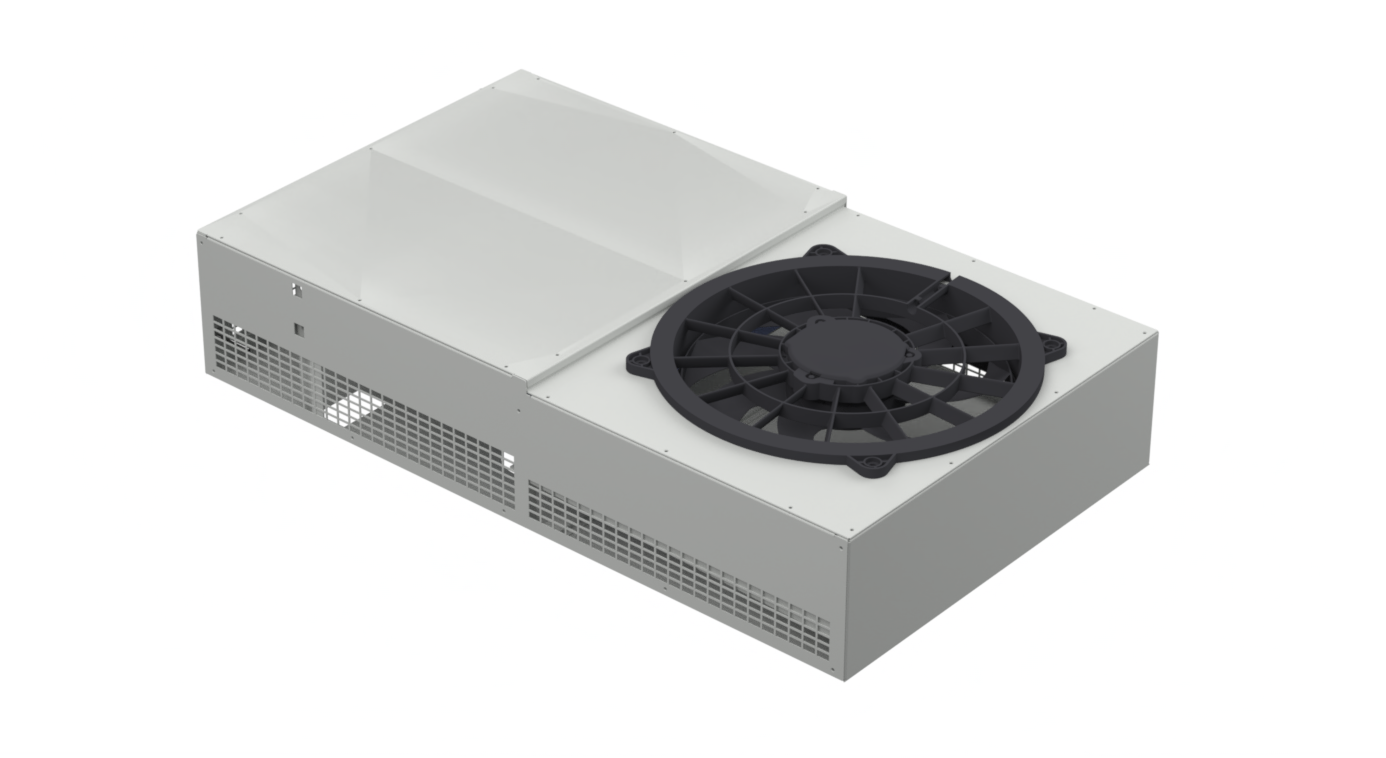

车规级双路液冷热管理系统_TMW0503AFU0HP1 卧式5+3顶出.png
车规级双路液冷热管理系统_TMW0503AFU0HP1 卧式5+3顶出背面.png
车规级双路液冷热管理系统_TMW0503AFR0AC1 卧式5+3单冷后出.jpg
车规级双路液冷热管理系统_TMW0503AFR0AC1 卧式5+3单冷后出背面.png
车规级双路液冷热管理系统_TMW0503AFR0HP1 卧式5+3热泵 后出.png
车规级双路液冷热管理系统_TMW0503AFR0HP1 卧式5+3热泵 后出背面.png
车规级双路液冷热管理系统_TMW0503AFU0HP1 卧式5+3顶出.png
车规级双路液冷热管理系统_TMW0503AFU0HP1 卧式5+3顶出背面.png

Product Features

ind_svg.svg

low noise

Vehicle-grade noise-reducing fan with low noise level.

ind_svg2.svg

Fast Response

Precise temperature control, flow regulation and heat dissipation strategies improve equipment operating efficiency and stability.

ind_svg3.svg

Safe and reliable

Abnormal conditions can cut off the power supply in time to prevent equipment damage or cause safety accidents.

ind_svg4.svg

Intelligent temperature control

Vehicle-grade heat pump circuits with high energy efficiency for low-temperature heating and a wide range of natural cooling for year-round energy efficiency.

Product Model

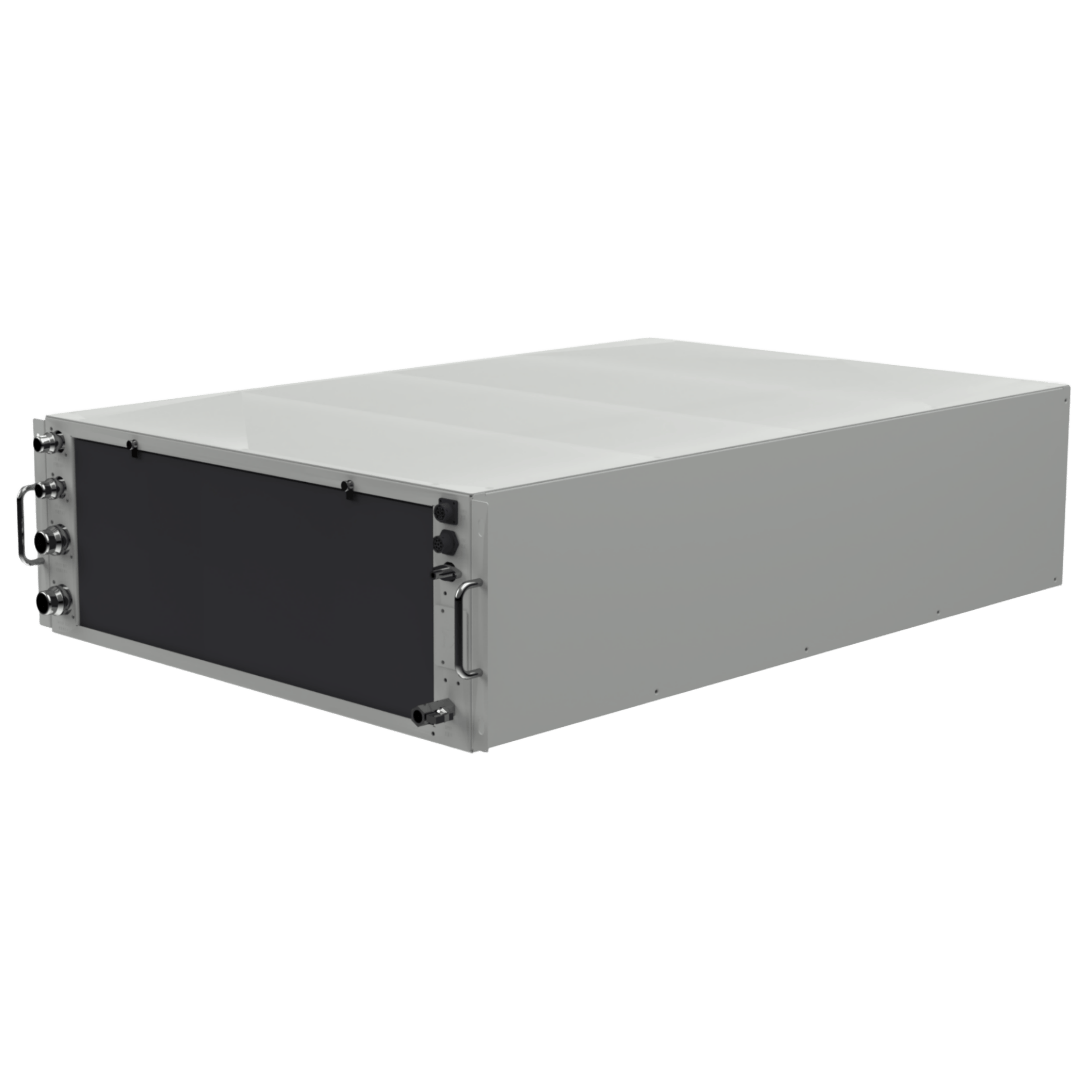

车规级双路液冷热管理系统_TMW0503AFR0AC1 卧式5+3单冷后出_方形_抠图.png

TMW0503AFR0AC1

车规级双路液冷热管理系统_TMW0503AFR0HP1 卧式5+3热泵 后出_方形_抠图.png

TMW0503AFR0HP1

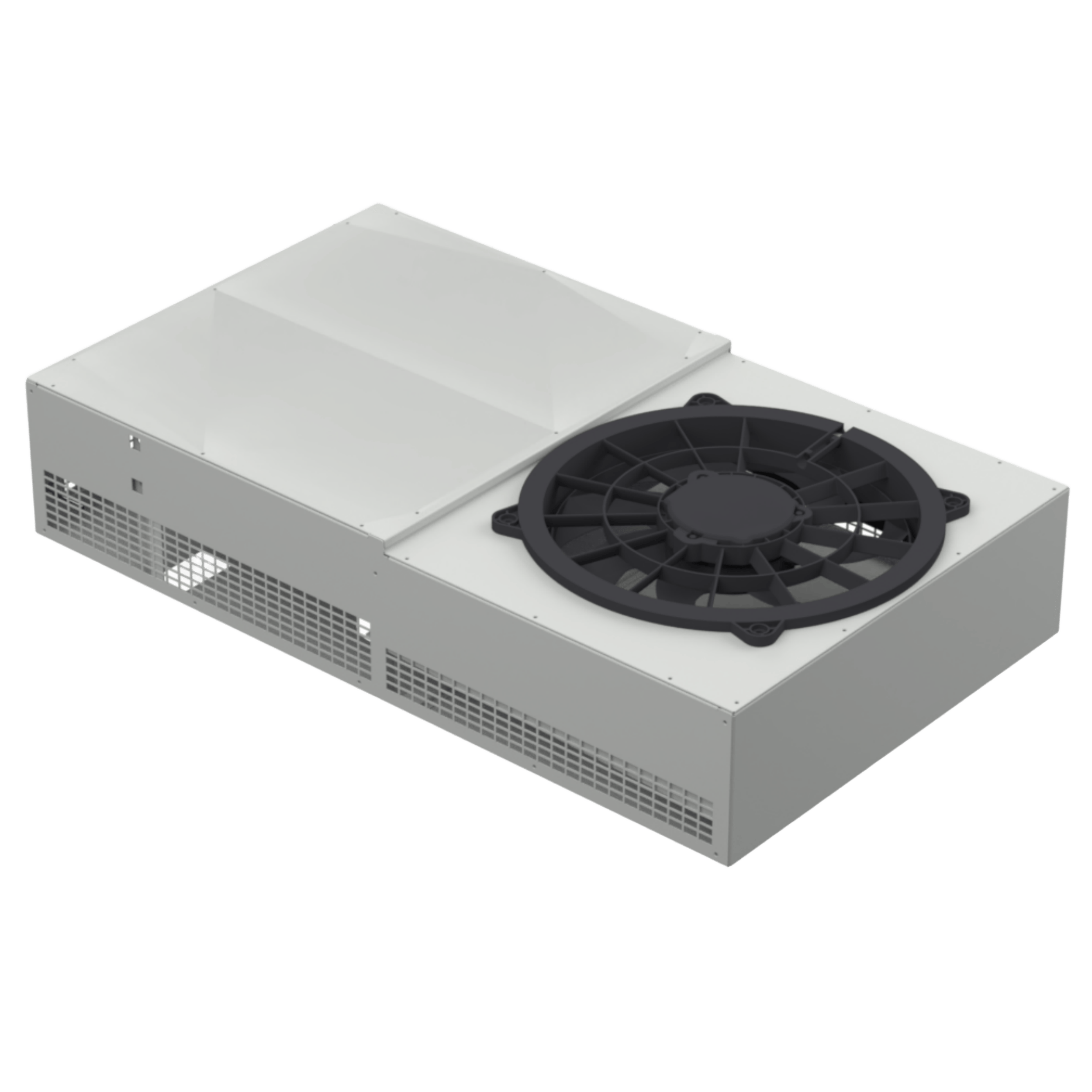

车规级双路液冷热管理系统_TMW0503AFU0HP1 卧式5+3顶出背面_方形_抠图.png

TMW0503AFU0HP1

电池侧制冷量

5 kW

5 kW

8 kW

PCS侧制冷量

3 kW

3 kW

3 kW

制热量

2 kW

3 kW（热泵）

3 kW（热泵）

进出风模式

前进 后出

前进 后出

前进 后出

集成模块除湿

/

/

/

工作环境温度

-30～55℃

-30～55℃

-30～55℃

COP

≥3.8

≥3.8

≥3.8

供电

220V AC±10%或380V AC±10%

220V AC±10%或380V AC±10%

220V AC±10%或380V AC±10%

机组重量（kg）

≤ 90kg

≤ 90kg

≤ 95kg

机组尺寸（mm）（W×D×H）

790×1000×260

790×1000×90

790×1200×290

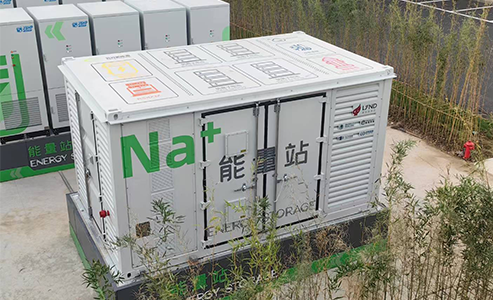

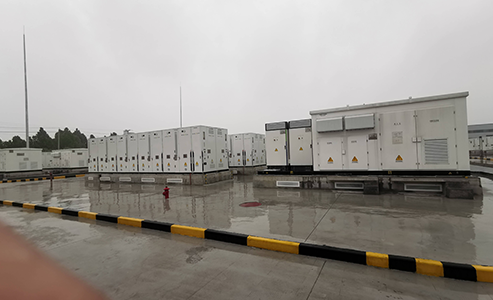

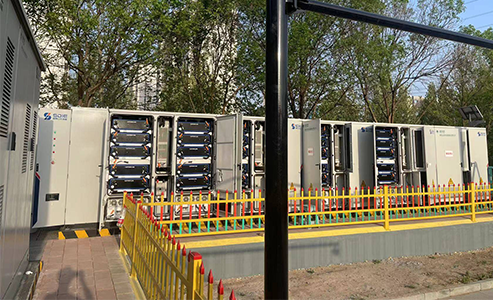

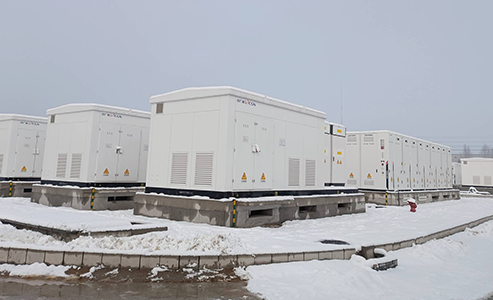

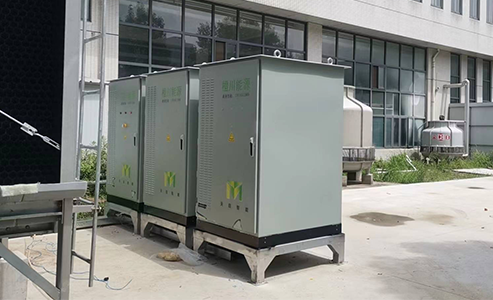

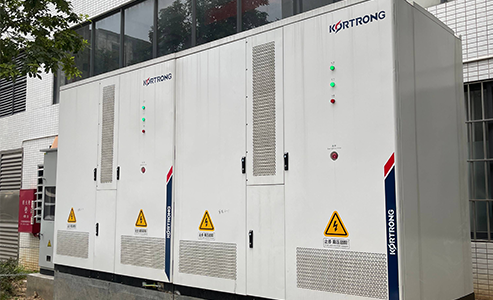

Landing on real-world scenarios

Industry Applications







Explore infinite possibilities

Other commodities

TMW0500AFR0AC2 卧式5kW (1)_副本.jpg

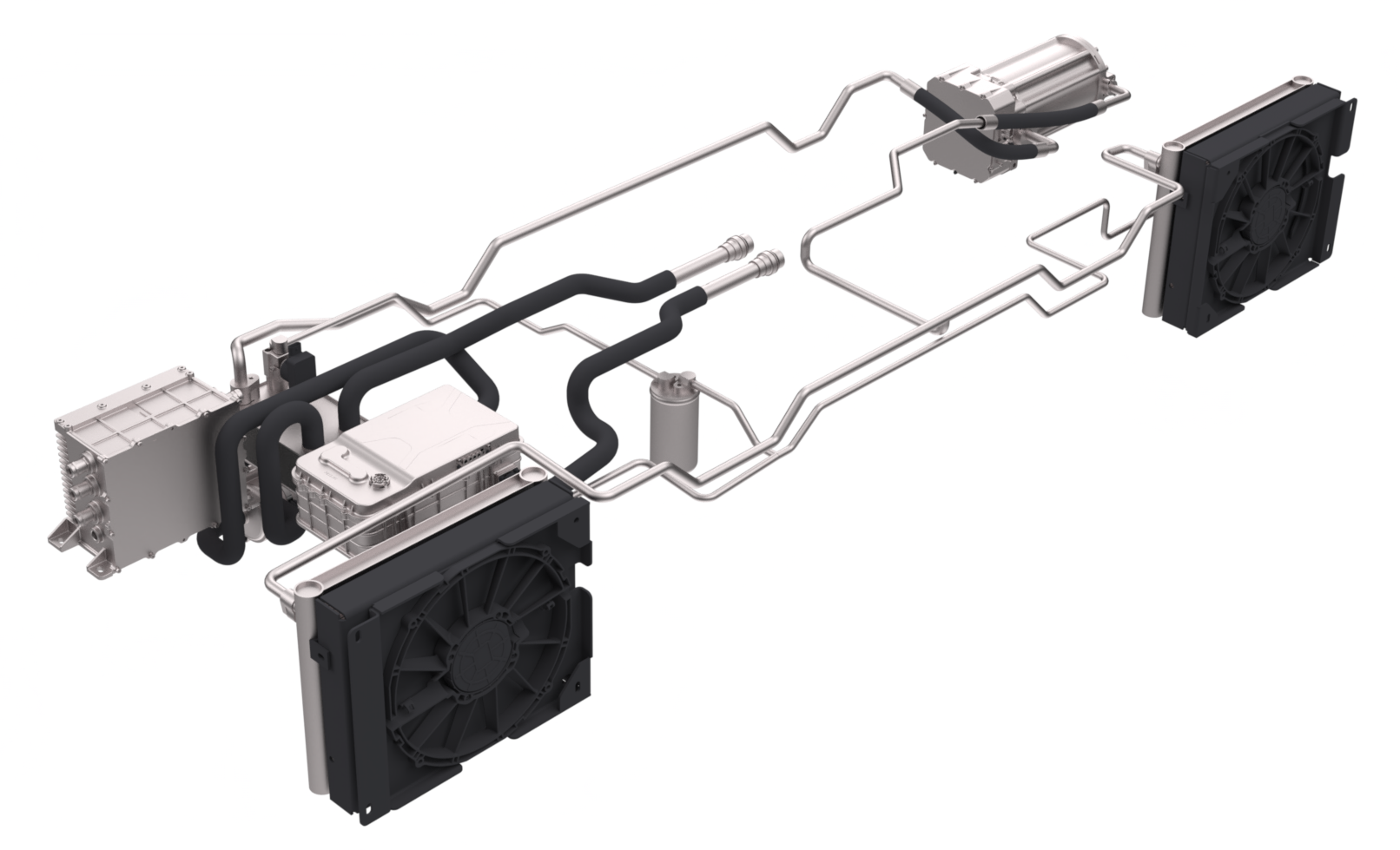

Vehicle-grade inverter thermal management system
